#include <zephyr/kernel.h>
#include <zephyr/bluetooth/bluetooth.h>
#include <zephyr/bluetooth/hci.h>
#include <zephyr/bluetooth/mesh.h>
#include <zephyr/sys/byteorder.h>
#include <zephyr/sys/util.h>
#include <math.h>
#include <bluesync/bluesync.h>
#include "bluesync.h"
#include "bs_state_machine.h"
#include "bluesync_bitfields.h"
#include "local_time.h"
#include <zephyr/logging/log.h>

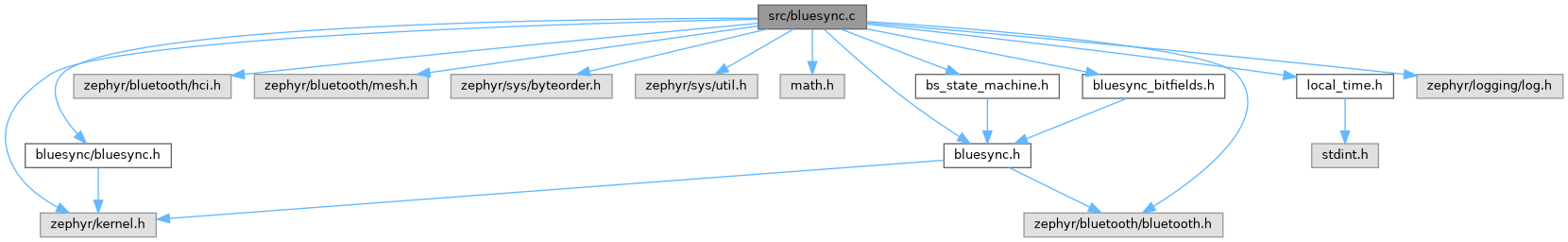

Include dependency graph for bluesync.c:

Macros
#define	BT_UNIT_MS_TO_TICKS(_ms) ((_ms) * 8 / 5)

#define	BLUESYNC_BT_MIN_ADV_INT BT_UNIT_MS_TO_TICKS(30)

#define	BLUESYNC_BT_MAX_ADV_INT BT_UNIT_MS_TO_TICKS(60)

#define	BLUESYNC_BT_SCAN_INT BT_UNIT_MS_TO_TICKS(60)

#define	BLUESYNC_BT_SCAN_WIND_SIZE BT_UNIT_MS_TO_TICKS(60)

Functions
	LOG_MODULE_REGISTER (bluesync, CONFIG_BLUESYNC_LOG_LEVEL)

	K_THREAD_STACK_DEFINE (bluesync_thread_stack, CONFIG_BLUESYNC_THREAD_STACK_SIZE)

	K_MSGQ_DEFINE (bluesync_rx_msgq, sizeof(struct bluesync_msg_client), 17, 1)

	K_SEM_DEFINE (bluesync_end_sync_sem, 0, 1)

	K_SEM_DEFINE (bluesync_start_new_sync_sem, 0, 1)

	K_SEM_DEFINE (bluesync_role_assign_sem, 0, 1)

static void	reset_bluesync_timestamps (bluesync_timestamps_t *elem)

static void	add_bluesync_timestamps (bluesync_timestamps_t *elem, uint8_t pos, int64_t ticks)

static void	bluesync_reset_param ()

static bluesync_status_t	calculate_lr_from_history (double slope, double offset, size_t min_nb_timestamp)

static void	bluesync_decode_msg (struct bluesync_msg_client msg, struct net_buf_simple buf)

static void	bluesync_store_current_burst ()

static bluesync_status_t	end_sync_timeslot_process ()

void	drift_estimation_handler (struct k_timer *timer_id)

static void	bluesync_scan_packet_process ()

static bluesync_status_t	bluesync_encode_msg (struct bt_data *bt_pkt, uint8_t current_round_id, uint8_t current_timeslot_idx, int64_t time_ticks)

static void	bluesync_send_adv ()

void	scan_cb (const bt_addr_le_t addr, int8_t rssi, struct net_buf_simple buf)

static void	bt_scan_cb (const bt_addr_le_t addr, int8_t rssi, uint8_t adv_type, struct net_buf_simple buf)

static void	bluesync_scan_start ()

static void	bluesync_scan_stop ()

static void	bluesync_adv_process ()

void	adv_sent_cb (struct bt_le_ext_adv adv, struct bt_le_ext_adv_sent_info info)

static void	bluesync_init_adv ()

void	bs_scan_wait_for_sync_handler (void)

void	bs_sync_handler ()

void	bs_update_handler (void)

void	bs_adv_handler (void)

void	bs_stop_handler (void)

void	bluesync_thread_fnt (void arg1, void arg2, void *arg3)

void	bluesync_init ()
	Initializes the BlueSync time synchronization module.

void	bluesync_set_role (bluesync_role_t role)
	Sets the operational role of the BlueSync node.

void	bluesync_start_net_sync ()
	Starts a BlueSync synchronization round as the time authority.

void	bluesync_start_net_sync_with_unix_epoch_us (uint64_t unix_epoch_us)
	Starts a synchronization round using a known UNIX epoch time.

Variables
static struct bluesync_param	param

static uint8_t	bt_packet_buf [sizeof(uint16_t)+sizeof(struct bluesync_msg)] = {0}

static struct bt_le_ext_adv_cb	bt_callbacks

struct bs_sm_handlers	handlers

Macro Definition Documentation

◆ BLUESYNC_BT_MAX_ADV_INT

#define BLUESYNC_BT_MAX_ADV_INT BT_UNIT_MS_TO_TICKS(60)

Definition at line 54 of file bluesync.c.

◆ BLUESYNC_BT_MIN_ADV_INT

#define BLUESYNC_BT_MIN_ADV_INT BT_UNIT_MS_TO_TICKS(30)

Definition at line 53 of file bluesync.c.

◆ BLUESYNC_BT_SCAN_INT

#define BLUESYNC_BT_SCAN_INT BT_UNIT_MS_TO_TICKS(60)

Definition at line 55 of file bluesync.c.

◆ BLUESYNC_BT_SCAN_WIND_SIZE

#define BLUESYNC_BT_SCAN_WIND_SIZE BT_UNIT_MS_TO_TICKS(60)

Definition at line 56 of file bluesync.c.

◆ BT_UNIT_MS_TO_TICKS

#define BT_UNIT_MS_TO_TICKS ( _ms ) ((_ms) * 8 / 5)

Definition at line 52 of file bluesync.c.

Function Documentation

◆ add_bluesync_timestamps()

static void add_bluesync_timestamps	(	bluesync_timestamps_t *	elem,
		uint8_t	pos,
		int64_t	ticks
	)

static

Definition at line 124 of file bluesync.c.

◆ adv_sent_cb()

void adv_sent_cb	(	struct bt_le_ext_adv *	adv,
		struct bt_le_ext_adv_sent_info *	info
	)

Definition at line 518 of file bluesync.c.

◆ bluesync_adv_process()

static void bluesync_adv_process ( )

static

Definition at line 511 of file bluesync.c.

◆ bluesync_decode_msg()

static void bluesync_decode_msg	(	struct bluesync_msg_client *	msg,
		struct net_buf_simple *	buf
	)

static

Definition at line 223 of file bluesync.c.

◆ bluesync_encode_msg()

static bluesync_status_t bluesync_encode_msg	(	struct bt_data *	bt_pkt,
		uint8_t	current_round_id,
		uint8_t	current_timeslot_idx,
		int64_t	time_ticks
	)

static

Definition at line 362 of file bluesync.c.

◆ bluesync_init_adv()

static void bluesync_init_adv ( )

static

Definition at line 540 of file bluesync.c.

◆ bluesync_reset_param()

static void bluesync_reset_param ( )

static

Definition at line 139 of file bluesync.c.

◆ bluesync_scan_packet_process()

static void bluesync_scan_packet_process ( )

static

Definition at line 293 of file bluesync.c.

◆ bluesync_scan_start()

static void bluesync_scan_start ( )

static

Definition at line 481 of file bluesync.c.

◆ bluesync_scan_stop()

static void bluesync_scan_stop ( )

static

Definition at line 494 of file bluesync.c.

◆ bluesync_send_adv()

static void bluesync_send_adv ( )

static

Definition at line 394 of file bluesync.c.

◆ bluesync_store_current_burst()

static void bluesync_store_current_burst ( )

static

Definition at line 233 of file bluesync.c.

◆ bluesync_thread_fnt()

void bluesync_thread_fnt	(	void *	arg1,
		void *	arg2,
		void *	arg3
	)

Definition at line 597 of file bluesync.c.

◆ bs_adv_handler()

void bs_adv_handler ( void )

Definition at line 574 of file bluesync.c.

◆ bs_scan_wait_for_sync_handler()

void bs_scan_wait_for_sync_handler ( void )

Definition at line 550 of file bluesync.c.

◆ bs_stop_handler()

void bs_stop_handler ( void )

Definition at line 582 of file bluesync.c.

◆ bs_sync_handler()

void bs_sync_handler ( )

Definition at line 557 of file bluesync.c.

◆ bs_update_handler()

void bs_update_handler ( void )

Definition at line 561 of file bluesync.c.

◆ bt_scan_cb()

static void bt_scan_cb	(	const bt_addr_le_t *	addr,
		int8_t	rssi,
		uint8_t	adv_type,
		struct net_buf_simple *	buf
	)

static

Definition at line 473 of file bluesync.c.

◆ calculate_lr_from_history()

static bluesync_status_t calculate_lr_from_history	(	double *	slope,
		double *	offset,
		size_t	min_nb_timestamp
	)

static

Definition at line 154 of file bluesync.c.

◆ drift_estimation_handler()

void drift_estimation_handler ( struct k_timer * timer_id )

Definition at line 289 of file bluesync.c.

◆ end_sync_timeslot_process()

static bluesync_status_t end_sync_timeslot_process ( )

static

Definition at line 259 of file bluesync.c.

◆ K_MSGQ_DEFINE()

K_MSGQ_DEFINE	(	bluesync_rx_msgq	,
		sizeof(struct bluesync_msg_client)	,
		17	,
		1
	)

◆ K_SEM_DEFINE() [1/3]

K_SEM_DEFINE	(	bluesync_end_sync_sem	,
		0	,
		1
	)

◆ K_SEM_DEFINE() [2/3]

K_SEM_DEFINE	(	bluesync_role_assign_sem	,
		0	,
		1
	)

◆ K_SEM_DEFINE() [3/3]

K_SEM_DEFINE	(	bluesync_start_new_sync_sem	,
		0	,
		1
	)

◆ K_THREAD_STACK_DEFINE()

K_THREAD_STACK_DEFINE	(	bluesync_thread_stack	,
		CONFIG_BLUESYNC_THREAD_STACK_SIZE
	)

◆ LOG_MODULE_REGISTER()

LOG_MODULE_REGISTER	(	bluesync	,
		CONFIG_BLUESYNC_LOG_LEVEL
	)

◆ reset_bluesync_timestamps()

static void reset_bluesync_timestamps ( bluesync_timestamps_t * elem )

static

Definition at line 119 of file bluesync.c.

◆ scan_cb()

void scan_cb	(	const bt_addr_le_t *	addr,
		int8_t	rssi,
		struct net_buf_simple *	buf
	)

Definition at line 428 of file bluesync.c.

Variable Documentation

◆ bt_callbacks

struct bt_le_ext_adv_cb bt_callbacks

static

Initial value:

= {
    .sent = adv_sent_cb,
}

Definition at line 536 of file bluesync.c.

◆ bt_packet_buf

uint8_t bt_packet_buf[sizeof(uint16_t)+sizeof(struct bluesync_msg)] = {0}

static

Definition at line 360 of file bluesync.c.

◆ handlers

struct bs_sm_handlers handlers

Initial value:

={
    .bs_scan_wait_for_sync_cb = bs_scan_wait_for_sync_handler,
    .bs_sync_cb = bs_sync_handler,
    .bs_update_cb = bs_update_handler,
    .bs_adv_cb = bs_adv_handler,
    .bs_stop_cb = bs_stop_handler,
}

Definition at line 586 of file bluesync.c.

◆ param

struct bluesync_param param

static

Definition at line 60 of file bluesync.c.
